Features

• 130 dB Max SPL
• 2100 W Class-D Amplifier - Built-In DSP
• 1.75” Neo Compression Driver - 120° X 40° True Resistive Waveguide
• 6 × 3” Full-Range Neo Transducers
• 12” High-Power Woofer
• Enhanced Coverage And Clarity
• Composite Cabinet With Aluminum Stand Mount
• Sleek, Road-Ready Design
• Top Speaker Padded Carrying Bag Included

EVOX J9 is an active, three-way portable column system designed for maximum clarity and power in a compact format. A 1.75” compression driver coupled with a 120° × 40° True Resistive Waveguide ensures wide, consistent coverage, while 6 x 3” full-range transducers and a high-power 12” woofer in a bass-reflex enclosure deliver articulate mids and deep, controlled lows. Driven by a 2100W onboard dual-channel Class-D amplifier, EVOX J9 delivers an impressive 130 dB Max SPL output. Part of the EVOX J Series, it incorporates RCF’s tour-grade technology into a sleek, unobtrusive package that delivers crystal-clear vocals, natural musical response, and effortless deployment for bands, DJs, and live performers.

ELEVATE YOUR SOUND
EVOX J9 is an active, three-way portable column system designed for maximum clarity and power in a compact format. With a streamlined aesthetic, the premium composite design delivers unparalleled acoustic fidelity, raw power, and ease of deployment. EVOX J9 is the perfect fusion of Italian engineering and sophisticated design, ready to elevate any setting.

2100 W - Fast Transients. Zero Compromise.
Powered by a 2100W onboard Class-D amplifier, EVOX J9 delivers an impressive 130 dB Max SPL output. Three equalization presets are available: Live/Linear for perfectly flat, neutral output; Club for extended lows and crisp highs; and Voice for optimized intelligibility.
Highly energy-efficient, the J9 requires no cooling fan. The amplifier is mounted on a solid aluminum heat exchanger at the rear of the unit and has no moving parts. Mechanically coupled to the internal frame, the amplifier is securely braced within the cabinet for long-term reliability.

The input stage features a new low-distortion design with an advanced safety limiter that preserves the input signal's character at any level. EVOX J9 amplifier is designed in accordance with EN 62368-1 for maximum safety and feature a switch-mode power supply (SMPS) that combines high efficiency with minimal weight.

Neodymium compression driver (1.75” voice coil, Kapton dome) with a True Resistive Waveguide (TRW) for a resonance-free load and constant, 120° X 40° coverage.

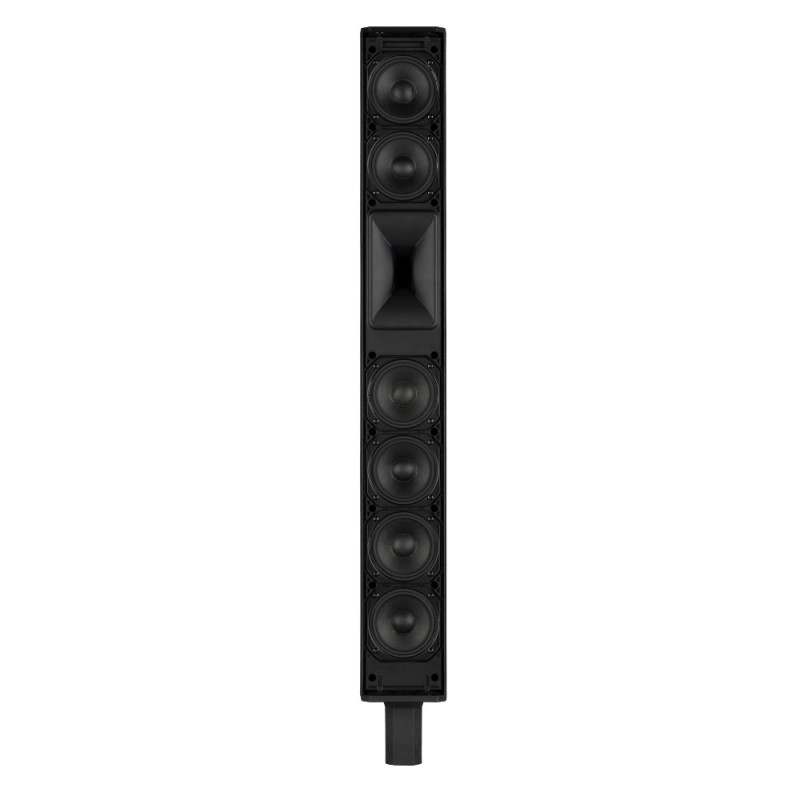

The forward radiation of the array of 6x3” neodymium drivers, combined with the centered waveguide, delivers a balanced point-source response.

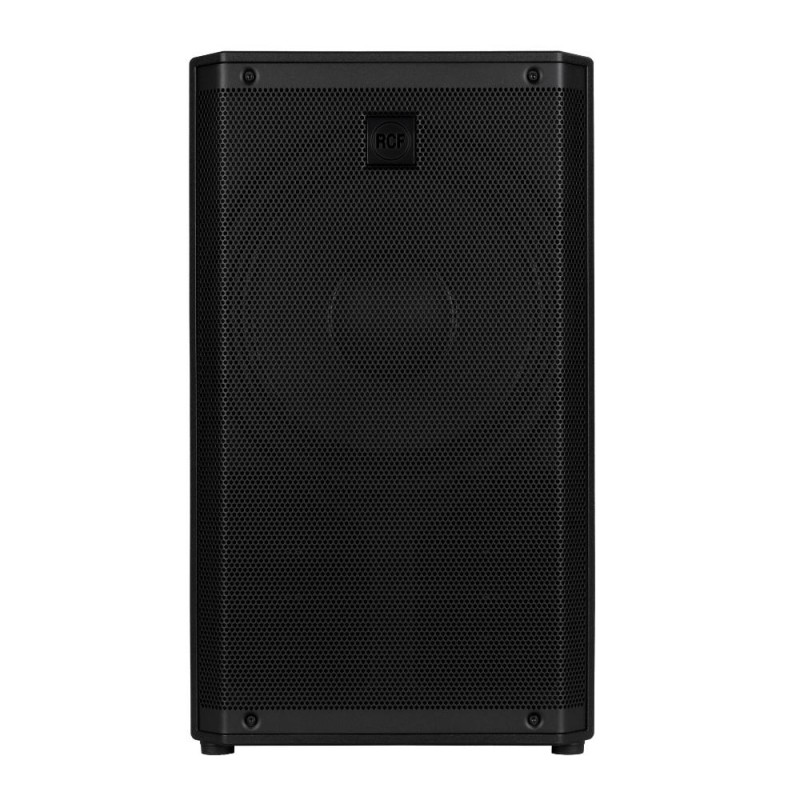

12” RCF transducer provides deep, controlled low frequencies, ideal for bass-heavy music and high-energy performances.

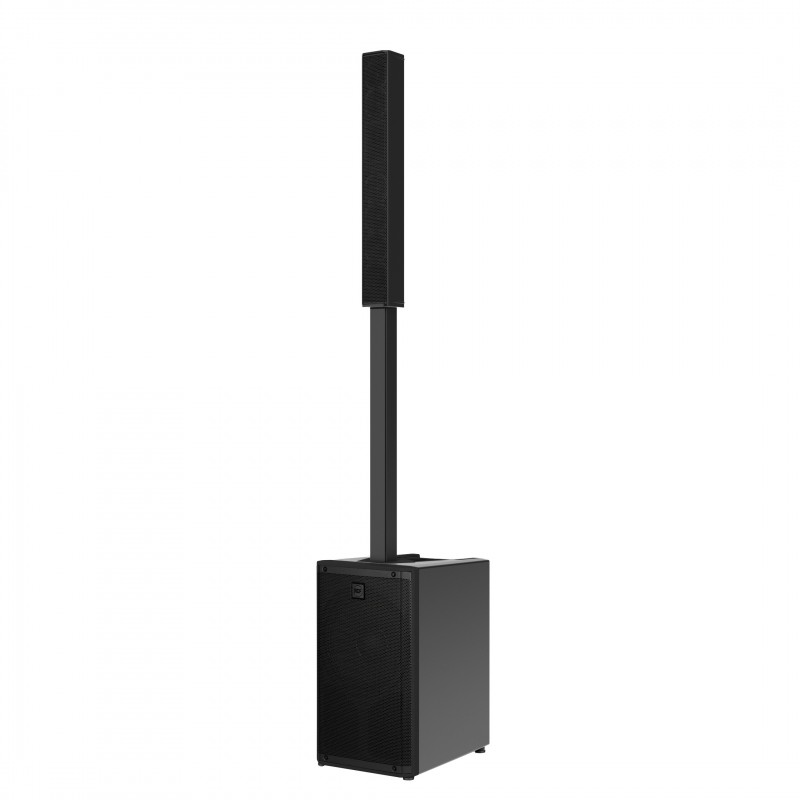

Variable Height Configuration

Black or white finishes, refined design, premium-grade materials, and ergonomic details that maximize portability while preserving the EVOX family’s sleek, familiar look. An included lightweight aluminum-alloy distance pole with integrated connections separates the top from the subwoofer; an optional half-size pole extension is available. The heights of J9 and JMIX9 are configurable, ranging from a zero-offset (column array attached to the bass enclosure) to a combination of full-length and half-length poles.
Quick Setup. Ready to Play.

Available in black or white, EVOX J9 includes a lightweight aluminum-alloy pole that links the column to the subwoofer and integrates all required connections for fast setup. Height is configurable: mount the column at standard height with the full-length pole, place it at zero offset directly on the bass enclosure, or raise it with full- or half-length pole extensions.

Ready for the Road
Every EVOX system includes a padded column transport bag for essential protection. To complete your setup, add an aluminum pole extension for quick, flexible height adjustments (available in half- and full-height options). For enhanced transport and storage, choose the optional protective subwoofer cover or the trolley-style cover with wheels for easy mobility.

Acoustical specifications
Frequency Response - 40 Hz - 20000 Hz
Max SPL @ 1m - 130 dB
Horizontal coverage angle - 120°
Vertical coverage angle - 40°

Transducers
Compression Driver - 1 x 0.75'' neo, 1.75'' v.c
Fullrange - 6 x 3.0'' neo, 1.0'' v.c
Woofer - 1 x 12'', 2.5'' v.c
Input/Output section
Input signal - bal/unbal
Input connectors - Combo XLR/Jack
Output connectors - XLR
Input sensitivity -2 dBu/+4 dBu
Processor section
Crossover Frequencies - 200 Hz/1800 Hz
Protections
Thermal, RMS
Limiter
Soft Limiter
Controls
Volume, Presets: LINEAR/LIVE, CLUB, VOICE
Power section
Total Power - 2100 W Peak
High frequencies - 700 W Peak
Low frequencies - 1400 W Peak
Cooling - Convection
Connections - VDE
Standard compliance
Safety agency
CE compliant
Physical specifications
Cabinet/Case Material - PP Composite
Handles - 1 Top
Pole mount/Cap
Quick-fit socket
Grille - Steel
Color - Black, White - RAL 9003
Size / Weight
Height - 2080.1 mm / 81.89 inches
Width - 350 mm / 13.78 inches
Depth - 462.6 mm / 18.21 inches
Weight - 28.3 kg / 62.39 lbs
Shipping information
Package Height - 680 mm / 26.77 inches
Package Width - 490 mm / 19.29 inches
Package Depth - 460 mm / 18.11 inches
Package Weight - 32 kg / 70.55 lbs
