GigBAR 3 ILS

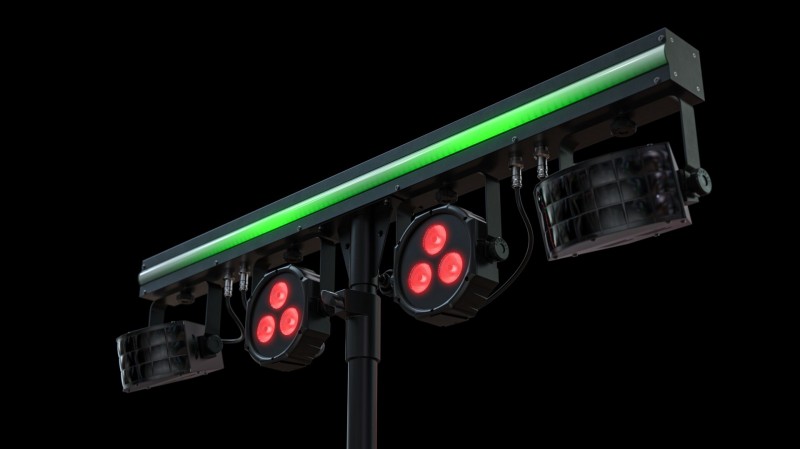

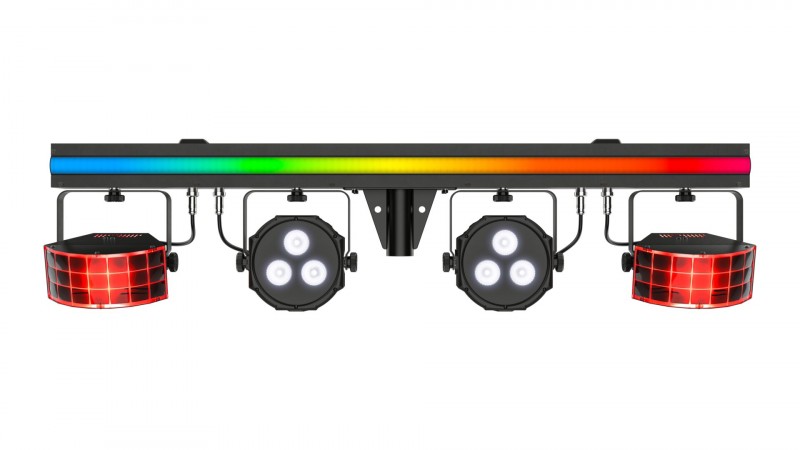

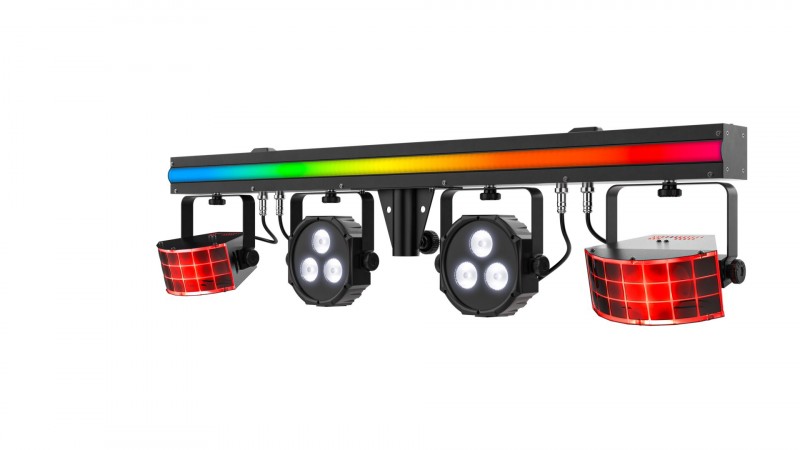

• 3-in-1 light that includes a pair of LED derbies, LED pars, and an LED strip, all mounted on one bar

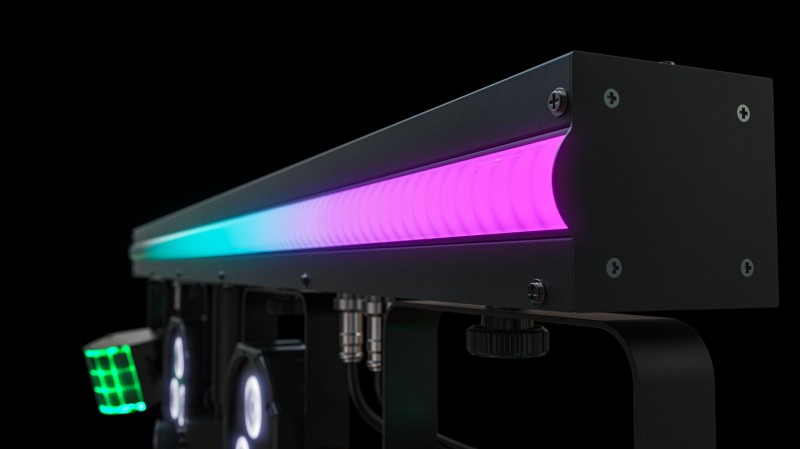

• Built-in LED strip adds pizazz and eye-candy effects to mobile entertainment setups
• ILS compatibility for use in the ILS ecosystem
• Create the ultimate light show by mounting up to 4 additional fixtures to the top of the GigBar 3 ILS
• Reversible tripod bracket allows for upside down mounting
• Easy navigation and access all functions directly from the fullcolor LCD display

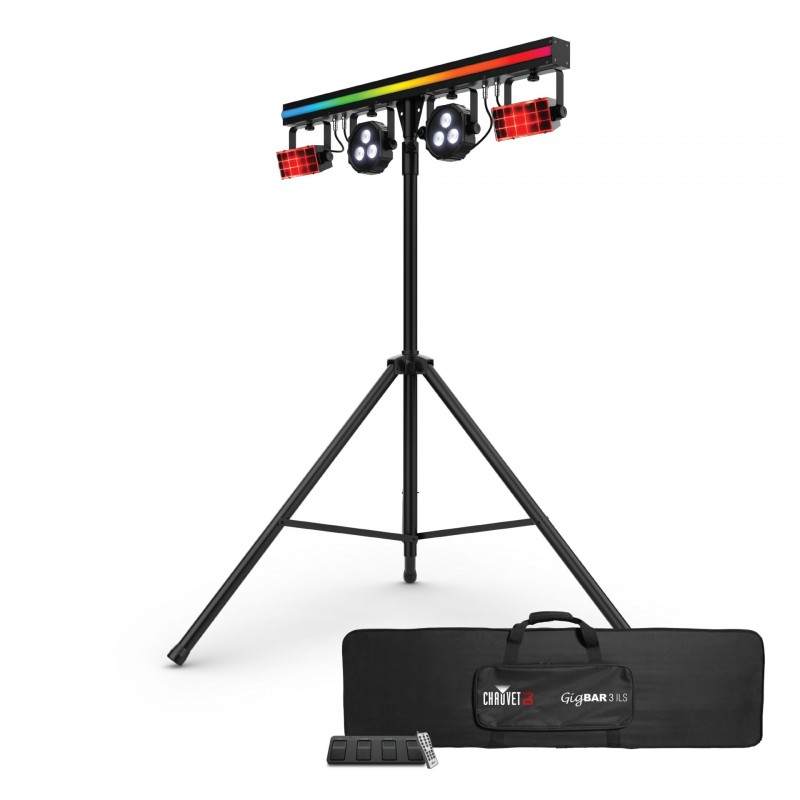

• Get in and get out quickly with the included tripod, wireless footswitch, and FREE carry bags
• Phenomenal, built-in, automated, and sound-activated programs that include all 3 effects to make one complete show
• Easy control from the display, included RF Remote, wireless foot switch or DMX to take your gig to a higher level
• Save time running cables and extension cords by power linking multiple units

SPECIFICATIONS

• DMX Channels: 2, 21, or 132
• DMX Connectors: 3-pin XLR
• Light Source (pars): 6 LEDs (quad-color RGB + UV) 3.7 W 1A), 50,000 hours life expectancy
• Light Source (LED Strip): 74 LEDs (red, green, blue) 5 W (.03 A), 50,000 hours life expectancy
• Light Source (derby): 6 LEDs (2 red, 2 green, 2 blue) 3 W (.6 A), 50,000 hours life expectancy
• Strobe Rate: 0 to 20 Hz • Stand Height: 4.8 ft to 7.8 ft (1.5 to 2.4 m)
• Tripod leg width: 3.9 ft (1.2 m) • Fits Tripod Size: 1.5 in (37.4 mm)
•  Beam Angle (pars): 13° • Field Angle (pars): 24°
• Coverage Angle (Derby): 114° • Coverage angle: ( LED Strip ) 174°
• Operating Frequency (D-Fi): 2.412 to 2.484 GHz
• Cable Length: 9 ft (2.844 m)
• Foot Switch Operating Frequency: 433 MHz
• Foot Switch Max Unobstructed Distance: 100 ft (30.5 m)
• Footswitch battery: 9V, 300mA
• Illuminance (pars): 1,205 lux @ 2 m (per head)
• Power Linking: 11 units 120 V; 18 units 230 V
• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power and Current: 47 W, .7A 120 V, 60 Hz
• Power and Current: 45 W, .4 A 230 V, 50 Hz
• Weight: 13.2 lbs. (6 kg)
• Size: 41.2 x 3.7 x 10.7 in (1047 x 94.5 x 272 mm)
• Optional Controllers: ILS Command, RF Remote
• Approvals: CE, ROHS, FCC Specifications
• 3-in-1 light that includes a pair of LED derbies, LED pars, and an LED strip, all mounted on one bar
• Built-in LED strip adds pizazz and eye-candy effects to mobile entertainment setups
• ILS compatibility for use in the ILS ecosystem
• Create the ultimate light show by mounting up to 4 additional fixtures to the top of the GigBar 3 ILS
• Reversible tripod bracket allows for upside down mounting
• Easy navigation and access all functions directly from the fullcolor LCD display
• Get in and get out quickly with the included tripod, wireless footswitch, and FREE carry bags
• Phenomenal, built-in, automated, and sound-activated programs that include all 3 effects to make one complete show
• Easy control from the display, included RF Remote, wireless foot switch or DMX to take your gig to a higher level
• Save time running cables and extension cords by power linking multiple units GigBAR 3 ILS CHAUVET
